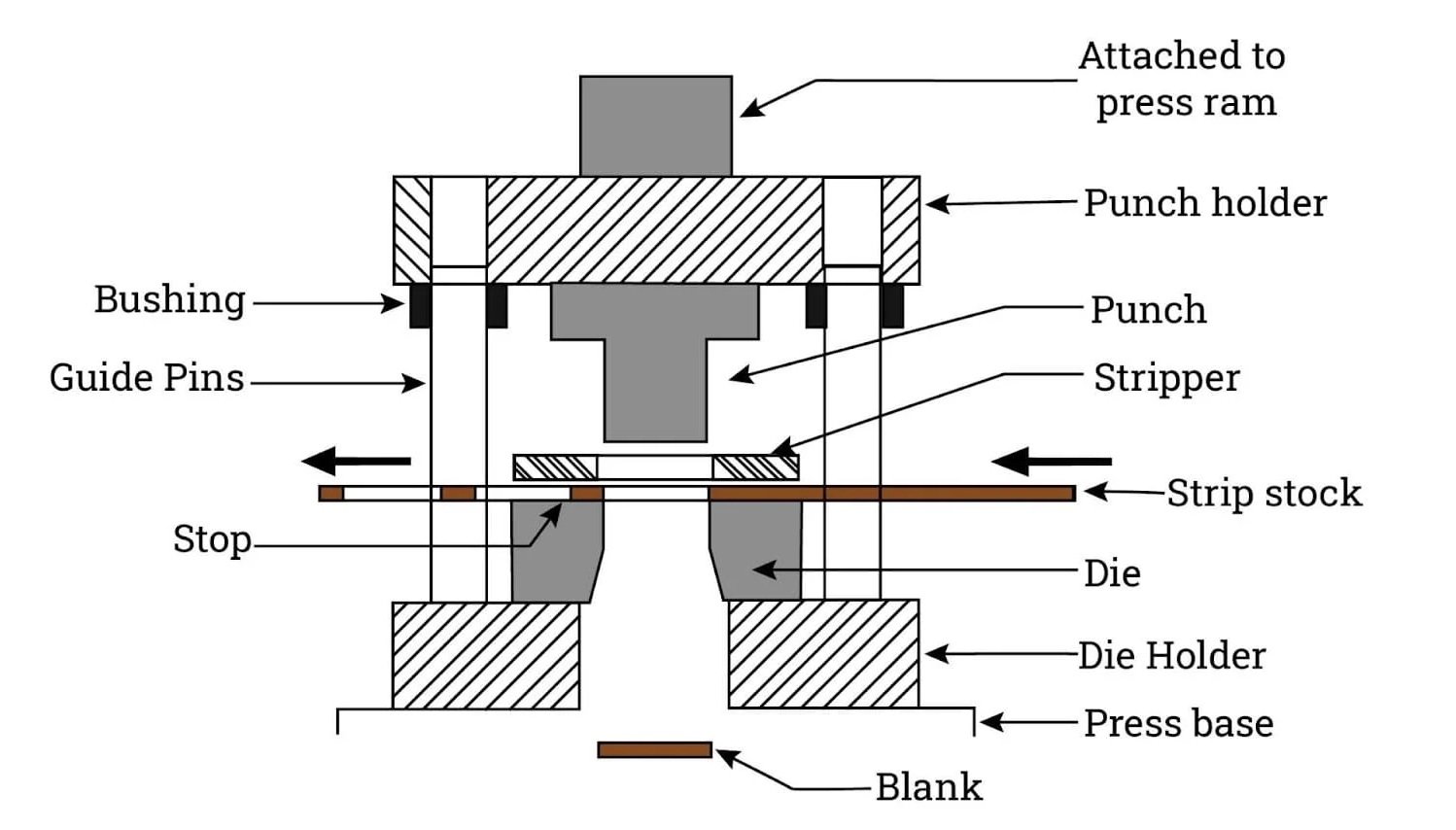

A specialized tool used in manufacturing to shape or cut material, typically metal, through processes like stamping, forging, or extrusion.
The main body that shapes the material.
Made from hardened tool steel.
A male part that presses into the die to form or cut the material.
Supports the die block and aligns it with the punch.
Ensure precise alignment between punch and die.
Remove the material from the punch after forming.
Provides support and absorbs pressure during operation.
Connects the die to the press machine.

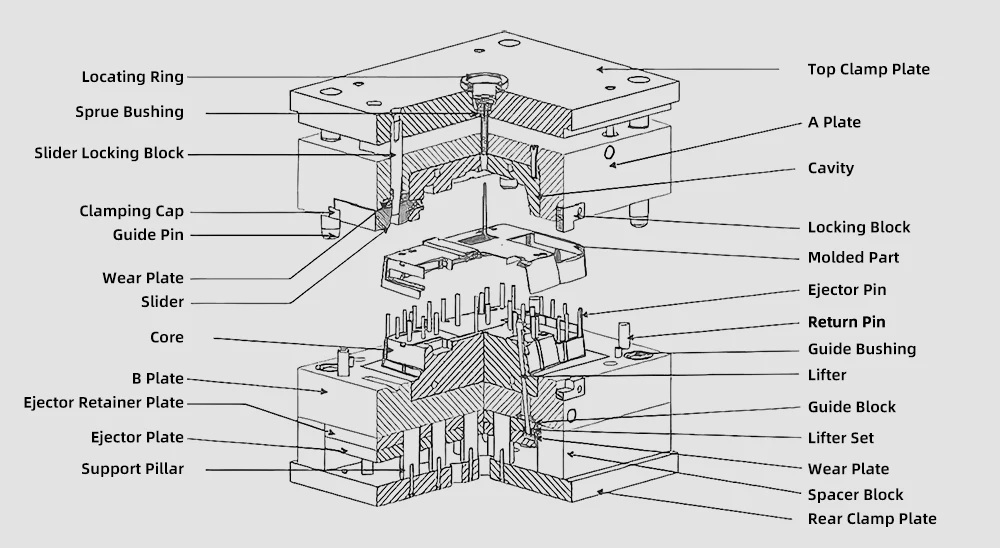

A hollow form used to shape materials like plastic or rubber by casting or injection molding.
Cavity: Female part that shapes the outer surface.
Core: Male part that shapes the inner surface.
Holds all mold components together.
Channels through which molten material flows into the cavity.
Push the finished part out of the mold.
Circulate coolant to control mold temperature.
Maintain alignment between mold halves.
Secures the mold to the injection molding machine.
